Jefferson County Engineer's Vertical Datum

JCE038(AZ-DISC)

DATA SHEET

DATA ID: JCE038                                                        COMMON NAME: AZ-DISC

DESCRIPTION:

MONUMENT TYPE: DISK                           SURVEY TIME: GPS - RTK

DATE OF LAST UPDATE: 02/09/01

VERTICAL INFORMATION

DATA DERIVED FROM GEOID96 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 25.782 FT    ELIPSOIDAL HEIGHT:    -64.323 FT

DATA DERIVED FROM GEOID99 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 25.644 FT    ELIPSOIDAL HEIGHT:    -64.323 FT

HORIZONTAL INFORMATION

DATA DERIVED FROM WGS1984 AND TXSC4204 STATE PLANE COORDINATE PROJECTION

WGS1984

LATITUDE: 30 7 0.191511 N

LONGITUDE: 94 10 7.410292 W

STATE PLANE COORDINATE TXSC4204

NORTHING: 13985150.595

EASTING: 3495571.849

Jefferson County Engineers Vertical Datumn

JCE038(AZ-DISC)

Photo of Location

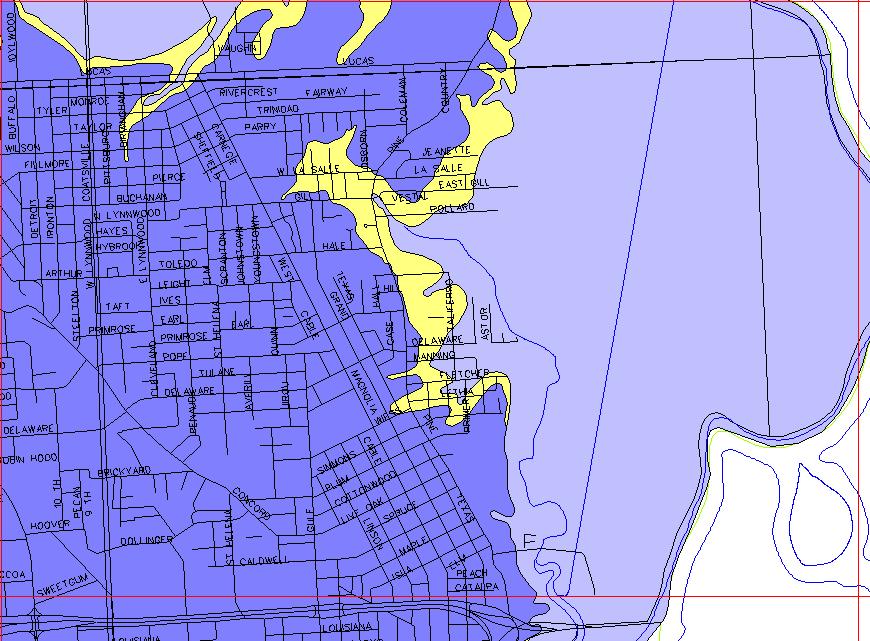

Map of Location
