Jefferson County Engineer's Vertical Datum

JCE057(DISC)

DATA SHEET

DATA ID: JCE057                                                        COMMON NAME: DISC

DESCRIPTION:

MONUMENT TYPE: DISK                           SURVEY TIME: GPS - RTK

DATE OF LAST UPDATE: 02/09/01

VERTICAL INFORMATION

DATA DERIVED FROM GEOID96 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 18.862 FT    ELIPSOIDAL HEIGHT:    -70.974 FT

DATA DERIVED FROM GEOID99 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 18.701 FT    ELIPSOIDAL HEIGHT:    -70.974 FT

HORIZONTAL INFORMATION

DATA DERIVED FROM WGS1984 AND TXSC4204 STATE PLANE COORDINATE PROJECTION

WGS1984

LATITUDE: 29 57 58.357367 N

LONGITUDE: 94 13 13.184075 W

STATE PLANE COORDINATE TXSC4204

NORTHING: 13929790.509

EASTING: 3481506.381

Jefferson County Engineers Vertical Datumn

JCE057(DISC)

Photo of Location

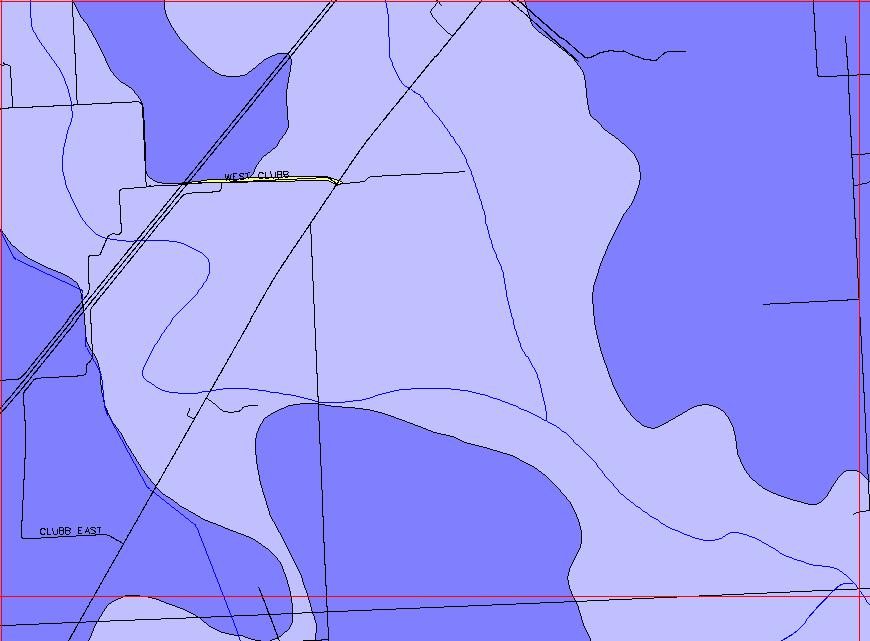

Map of Location
