Jefferson County Engineer's Vertical Datum

JCE079(DISC)

DATA SHEET

DATA ID: JCE079                                                        COMMON NAME: DISC

DESCRIPTION:  From the interesction of Westbury Road and Sour Lake Road go north on Sour Lake Road for app. 507.0 feet to Jefferson county engineer brass disc on the right.

MONUMENT TYPE: DISK                           SURVEY TIME: GPS - RTK

DATE OF LAST UPDATE: 02/09/01

VERTICAL INFORMATION

DATA DERIVED FROM GEOID96 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 43.627 FT    ELIPSOIDAL HEIGHT:    -46.471 FT

DATA DERIVED FROM GEOID99 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 43.467 FT    ELIPSOIDAL HEIGHT:    -46.471 FT

HORIZONTAL INFORMATION

DATA DERIVED FROM WGS1984 AND TXSC4204 STATE PLANE COORDINATE PROJECTION

WGS1984

LATITUDE: 30 5 18.470960 N

LONGITUDE: 94 18 19.609245 W

STATE PLANE COORDINATE TXSC4204

NORTHING: 13973122.943

EASTING: 3452792.641

Jefferson County Engineers Vertical Datumn

JCE079(DISC)

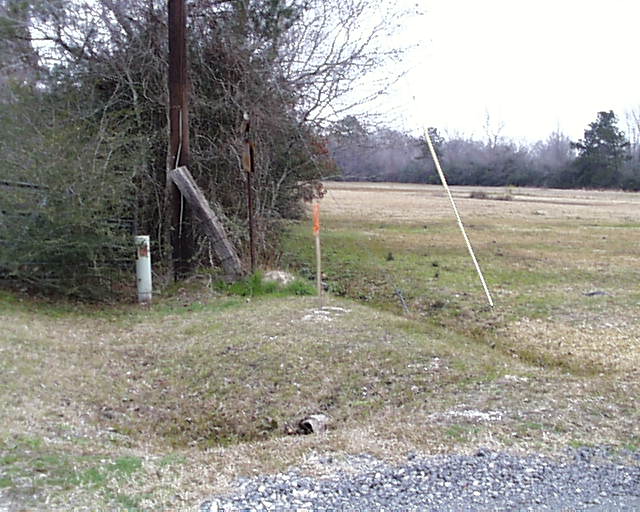

Photo of Location

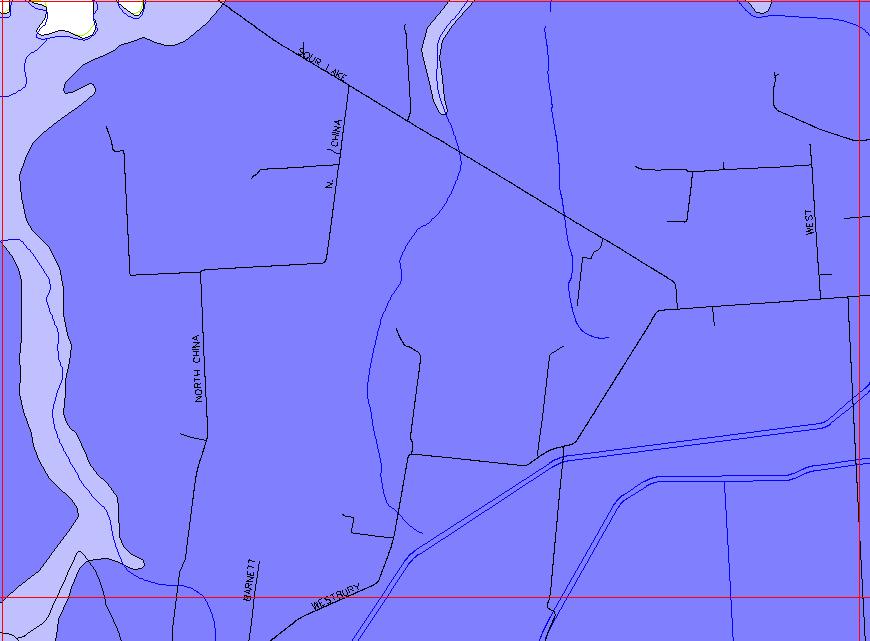

Map of Location
