Jefferson County Engineer's Vertical Datum

JCE103(DISC )

DATA SHEET

DATA ID: JCE103                                                        COMMON NAME: DISC

DESCRIPTION:  Disc at Tram Road and Quinn Ditch. Disc is stamped K-14 J-14 J-15 K-15

MONUMENT TYPE: DISK                           SURVEY TIME: GPS - RTK

DATE OF LAST UPDATE: 02/09/01

VERTICAL INFORMATION

DATA DERIVED FROM GEOID96 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 25.128 FT    ELIPSOIDAL HEIGHT:    -65.056 FT

DATA DERIVED FROM GEOID99 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 24.983 FT    ELIPSOIDAL HEIGHT:    -65.056 FT

HORIZONTAL INFORMATION

DATA DERIVED FROM WGS1984 AND TXSC4204 STATE PLANE COORDINATE PROJECTION

WGS1984

LATITUDE: 30 9 8.470243 N

LONGITUDE: 94 14 49.589254 W

STATE PLANE COORDINATE TXSC4204

NORTHING: 13997083.771

EASTING: 3470283.738

Jefferson County Engineers Vertical Datumn

JCE103(DISC )

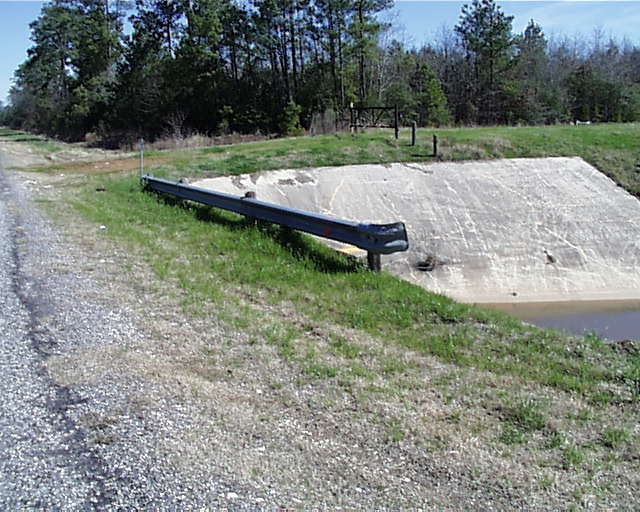

Photo of Location

Map of Location
