Jefferson County Engineer's Vertical Datum

JCE104(DISC)

DATA SHEET

DATA ID: JCE104                                                        COMMON NAME: DISC

DESCRIPTION:  Jefferson county engineer brass disc at Toliver Canal Road and the Meeker Municipal Water District.

MONUMENT TYPE: DISK                           SURVEY TIME: GPS - RTK

DATE OF LAST UPDATE: 02/09/01

VERTICAL INFORMATION

DATA DERIVED FROM GEOID96 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 24.878 FT    ELIPSOIDAL HEIGHT:    -65.306 FT

DATA DERIVED FROM GEOID99 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 24.737 FT    ELIPSOIDAL HEIGHT:    -65.306 FT

HORIZONTAL INFORMATION

DATA DERIVED FROM WGS1984 AND TXSC4204 STATE PLANE COORDINATE PROJECTION

WGS1984

LATITUDE: 30 9 25.999635 N

LONGITUDE: 94 13 58.162783 W

STATE PLANE COORDINATE TXSC4204

NORTHING: 13999036.892

EASTING: 3474722.787

Jefferson County Engineers Vertical Datumn

JCE104(DISC)

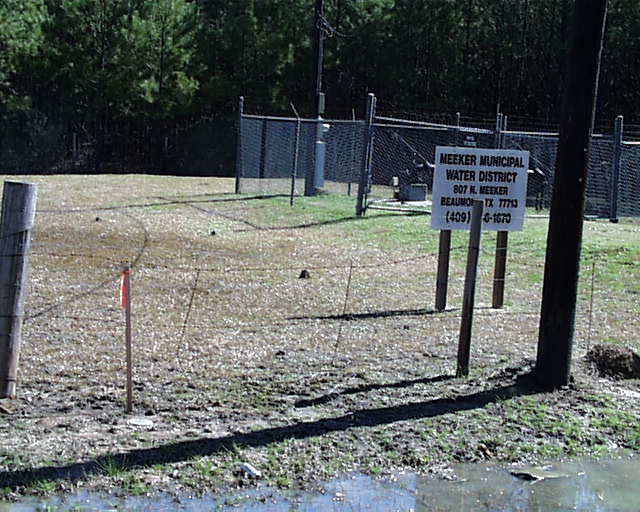

Photo of Location

Map of Location
