Jefferson County Engineer's Vertical Datum

JCE107(DISC)

DATA SHEET

DATA ID: JCE107                                                        COMMON NAME: DISC

DESCRIPTION:  From interesction of Keith Road and Dishman Road go app. 1.32 miles west down Dishman Road to a Jefferson county engineer brass disc .

MONUMENT TYPE: DISK                           SURVEY TIME: GPS - RTK

DATE OF LAST UPDATE: 02/09/01

VERTICAL INFORMATION

DATA DERIVED FROM GEOID96 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 37.92 FT    ELIPSOIDAL HEIGHT:    -52.165 FT

DATA DERIVED FROM GEOID99 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 37.773 FT    ELIPSOIDAL HEIGHT:    -52.165 FT

HORIZONTAL INFORMATION

DATA DERIVED FROM WGS1984 AND TXSC4204 STATE PLANE COORDINATE PROJECTION

WGS1984

LATITUDE: 30 5 43.457393 N

LONGITUDE: 94 14 1.991668 W

STATE PLANE COORDINATE TXSC4204

NORTHING: 13976560.133

EASTING: 3475302.874

Jefferson County Engineers Vertical Datumn

JCE107(DISC)

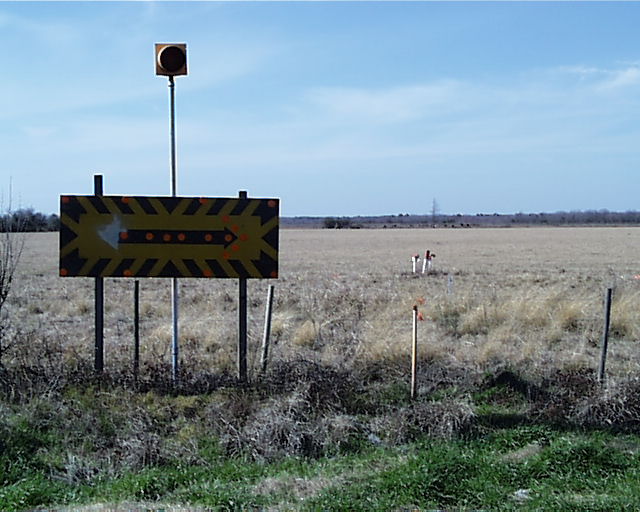

Photo of Location

Map of Location
