Jefferson County Engineer's Vertical Datum

JCE118(DISC)

DATA SHEET

DATA ID: JCE118                                                        COMMON NAME: DISC

DESCRIPTION:  Jefferson county engineer brass disc at the interesction of Travis and Madison.

MONUMENT TYPE: DISK                           SURVEY TIME: GPS - RTK

DATE OF LAST UPDATE: 02/09/01

VERTICAL INFORMATION

DATA DERIVED FROM GEOID96 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 15.775 FT    ELIPSOIDAL HEIGHT:    -74.001 FT

DATA DERIVED FROM GEOID99 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 15.647 FT    ELIPSOIDAL HEIGHT:    -74.001 FT

HORIZONTAL INFORMATION

DATA DERIVED FROM WGS1984 AND TXSC4204 STATE PLANE COORDINATE PROJECTION

WGS1984

LATITUDE: 29 59 24.311916 N

LONGITUDE: 94 0 50.259361 W

STATE PLANE COORDINATE TXSC4204

NORTHING: 13941192.872

EASTING: 3546423.396

Jefferson County Engineers Vertical Datumn

JCE118(DISC)

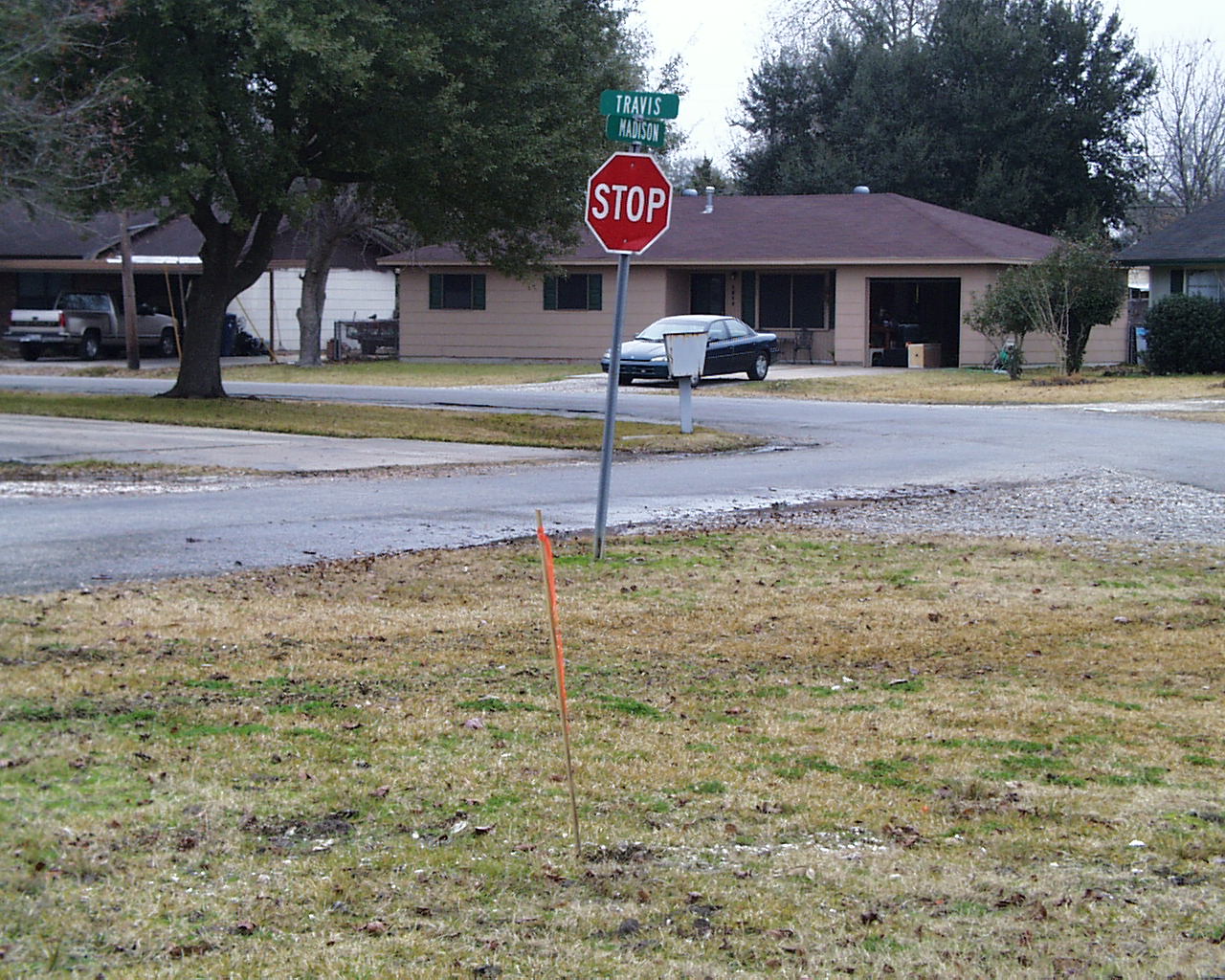

Photo of Location

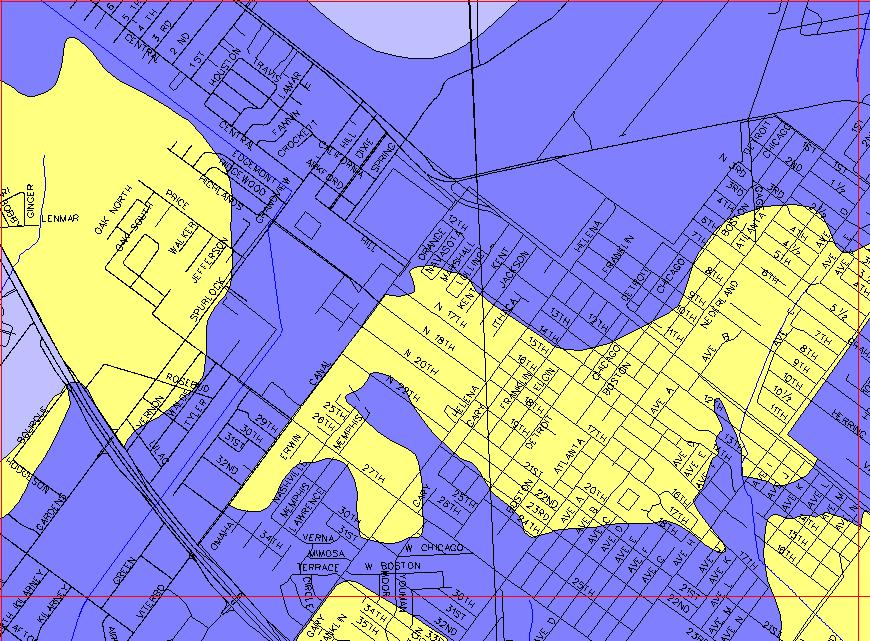

Map of Location
