Jefferson County Engineer's Vertical Datum

JCE121(DISC)

DATA SHEET

DATA ID: JCE121                                                        COMMON NAME: DISC

DESCRIPTION:  Jefferson county engineer brass disc at the intersection of T.B. Ellison Road and Levee Road.

MONUMENT TYPE: DISK                           SURVEY TIME: GPS - RTK

DATE OF LAST UPDATE: 02/09/01

VERTICAL INFORMATION

DATA DERIVED FROM GEOID96 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 6.922 FT    ELIPSOIDAL HEIGHT:    -82.32 FT

DATA DERIVED FROM GEOID99 IN U.S. SURVEY FEET

ORTHOMETRIC HEIGHT (ELEVATION MSL): 6.791 FT    ELIPSOIDAL HEIGHT:    -82.32 FT

HORIZONTAL INFORMATION

DATA DERIVED FROM WGS1984 AND TXSC4204 STATE PLANE COORDINATE PROJECTION

WGS1984

LATITUDE: 29 52 21.617317 N

LONGITUDE: 93 55 3.227790 W

STATE PLANE COORDINATE TXSC4204

NORTHING: 13899847.803

EASTING: 3578766.179

Jefferson County Engineers Vertical Datumn

JCE121(DISC)

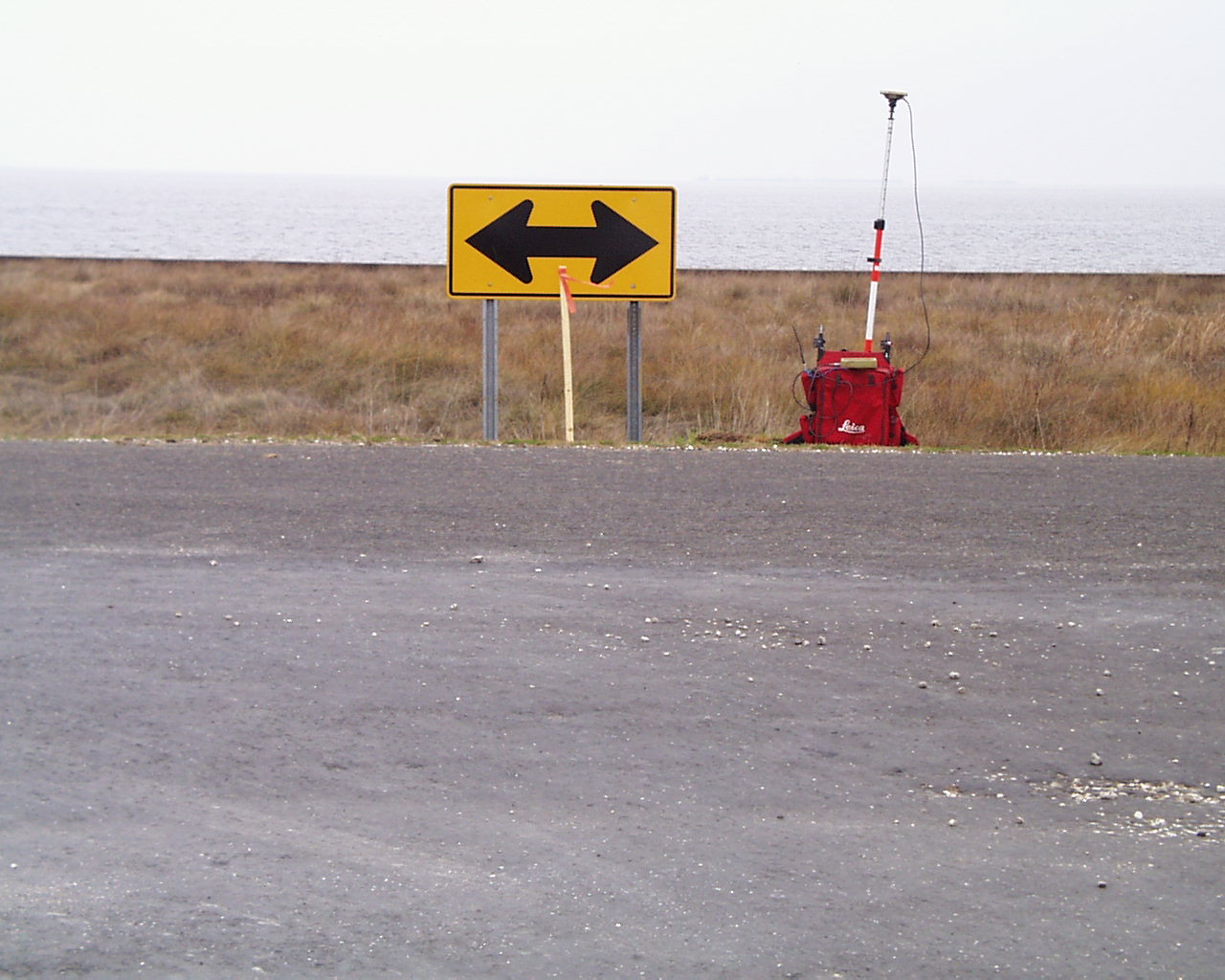

Photo of Location

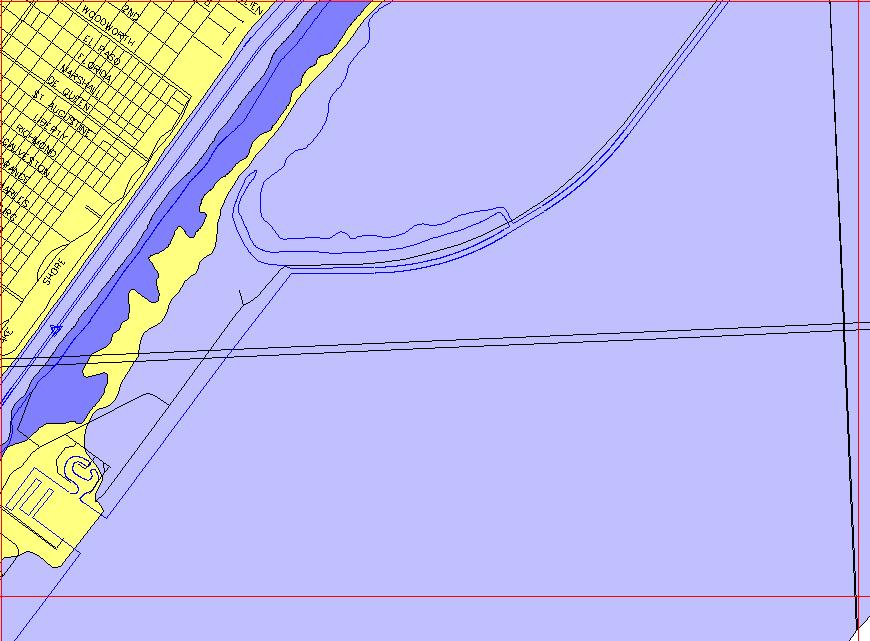

Map of Location
